Essex Steam Wallis & Steevens





12th November 2022
Continuing progress. Part 9 - Fit long stays and prepare fire door ring.

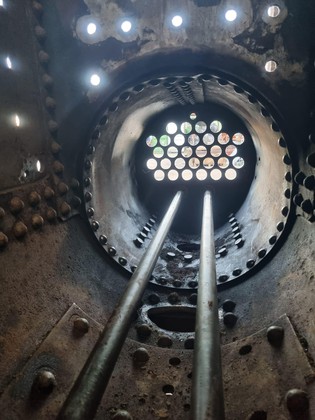

Long stays

Long stays

Long stays

Long stays

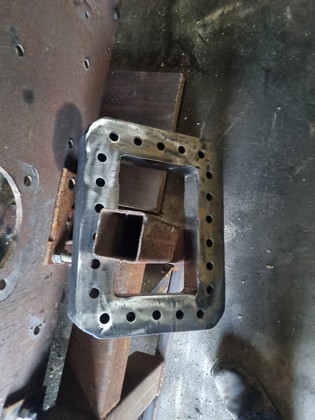

Fire door ring

Fire door ring



November 2022
Continuing progress. Part 9 - Fit tubeplate.

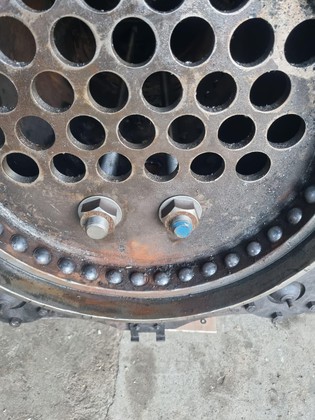

Front tubeplate close up

Front tubeplate close up

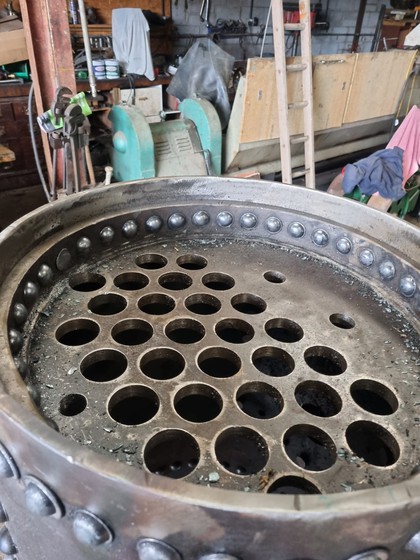

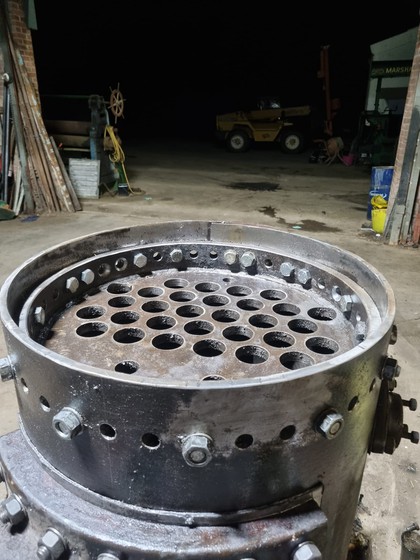

Tube plate

Tube plate



October 2022
Continuing progress. Part 8 - Firebox prepare.

Start of firebox

Start of firebox



October 2022
Continuing progress. Part 7 - Block onto barrel.

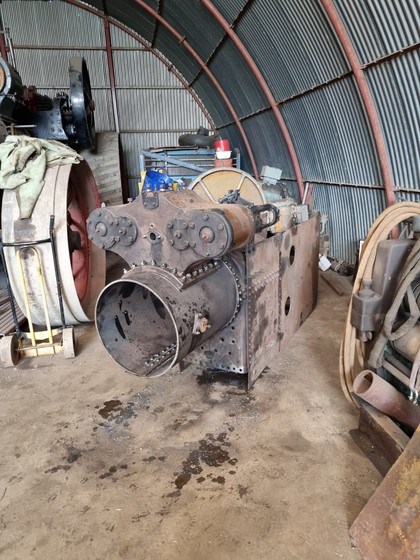

Barrel and block reunited

Barrel and block reunited



September 2022
Continuing progress. Part 6 - Firehole door spacer.

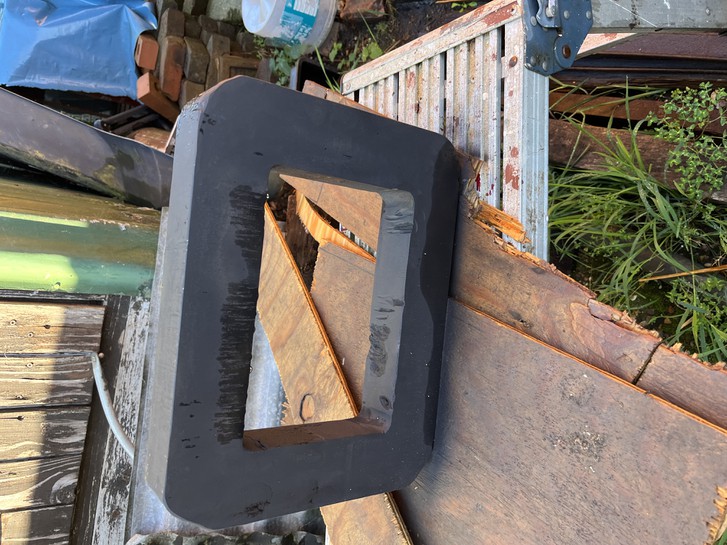

Ring for firehole

Ring for firehole



September 2022
Continuing progress. Part 5 - New Firebox beginning.

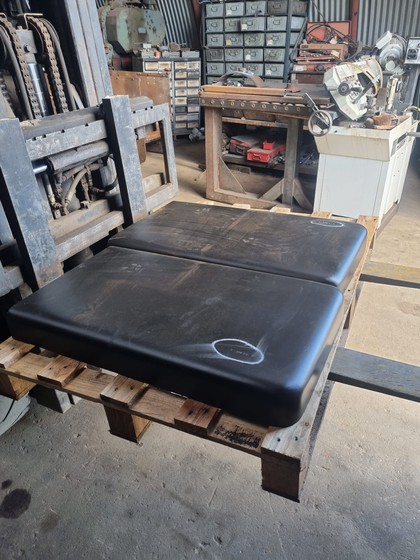

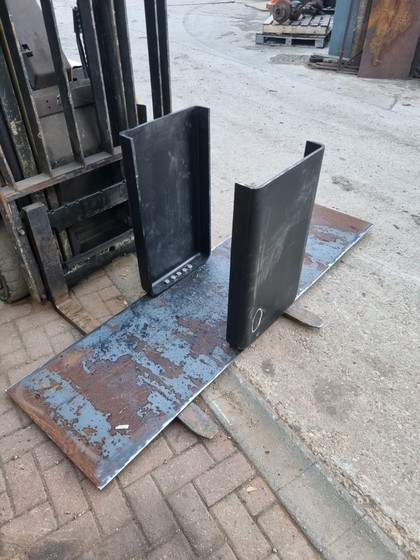

New firebox ends

New firebox ends



March 2022
Continuing progress. Part 4 - Firebox prepare.

Wrapper

Wrapper



November 2020
Continuing progress. Part 3 - more strip down.

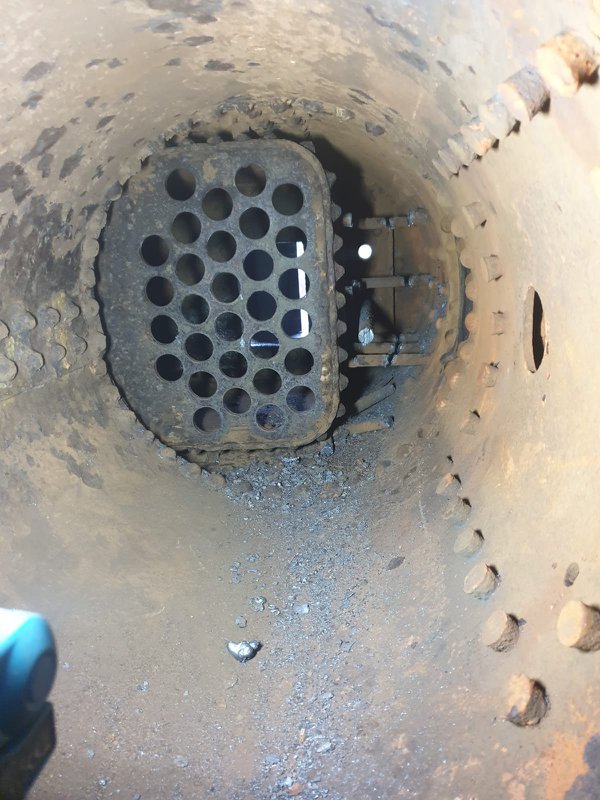

Smokebox off, ready to draw tubeplate

Smokebox off, ready to draw tubeplate

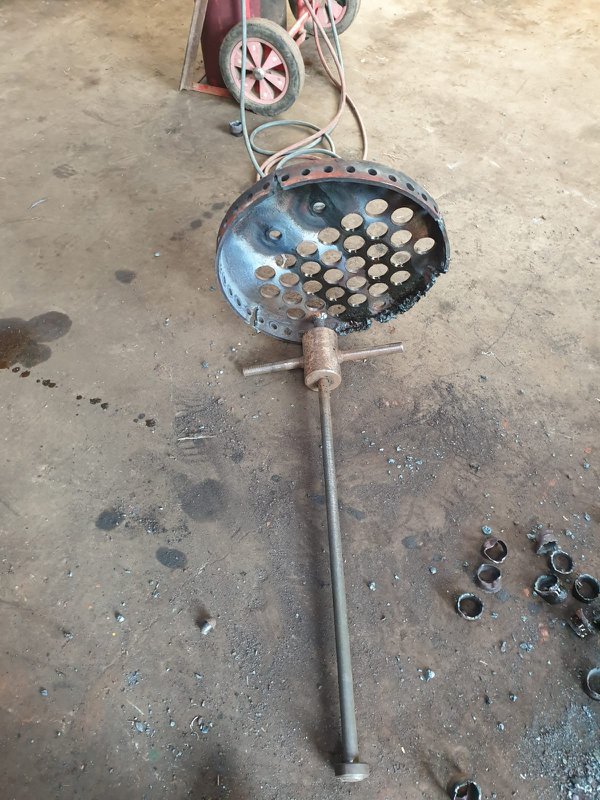

Tubeplate out

Tubeplate out

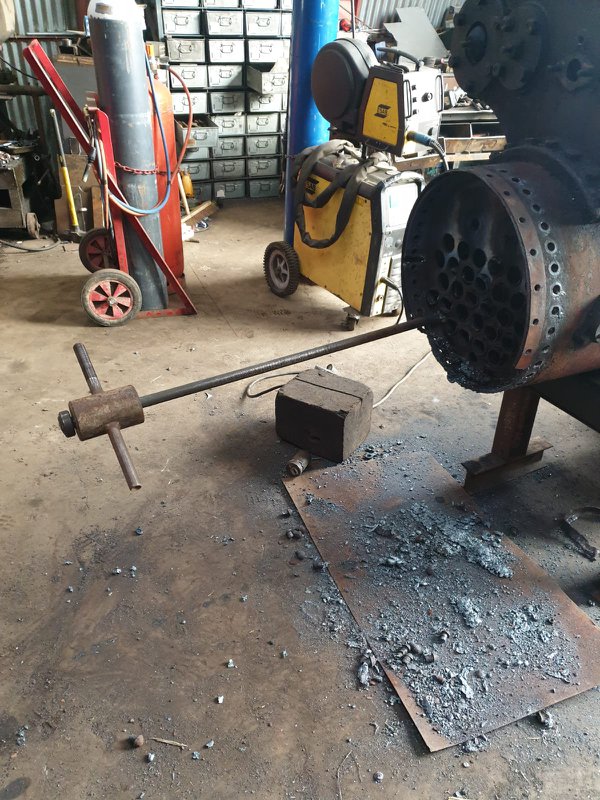

Tubes out, stays cut

Tubes out, stays cut

Foundation ring coming out

Foundation ring coming out

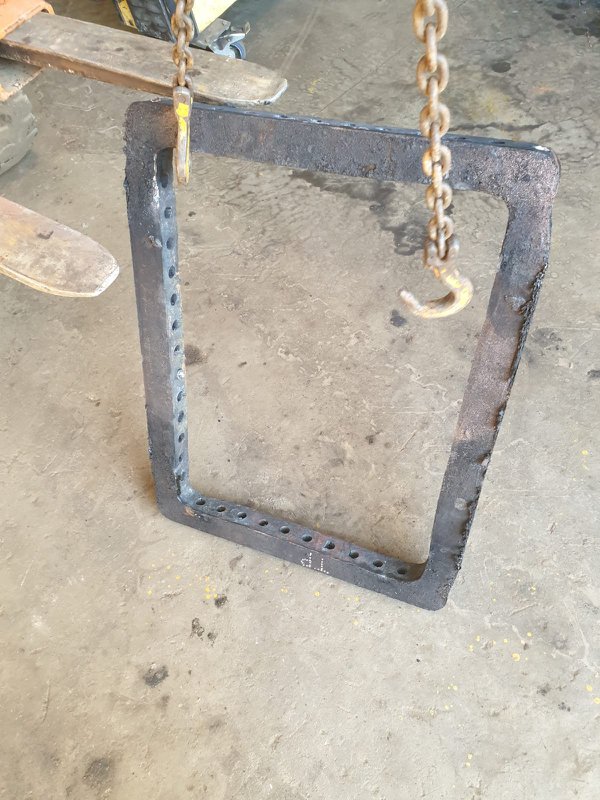

Foundation ring out

Foundation ring out

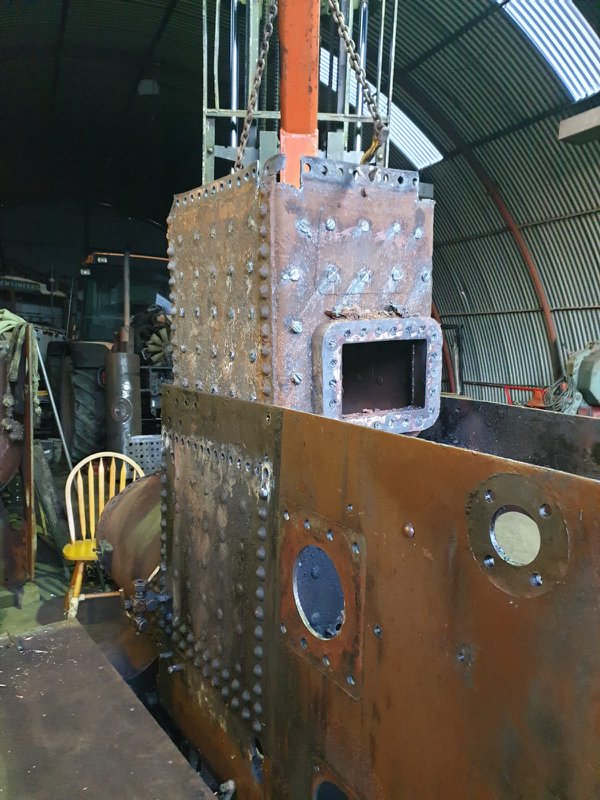

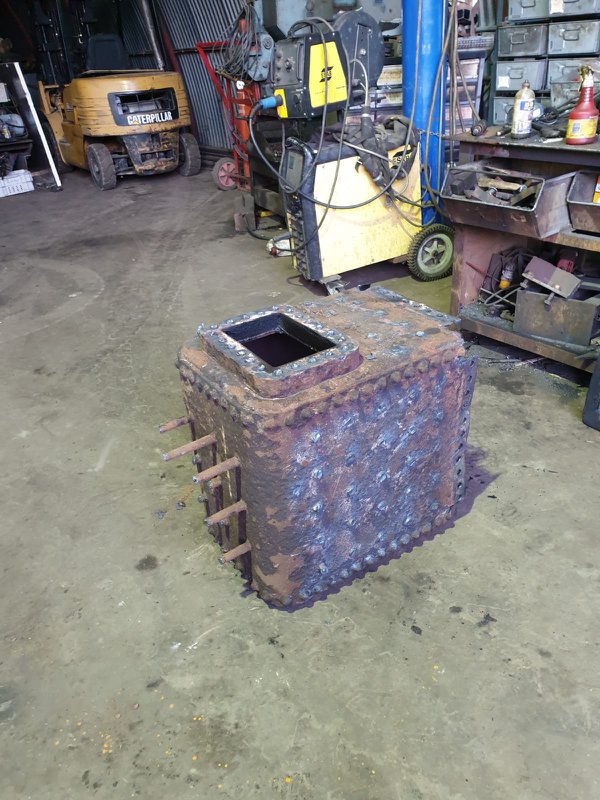

Firebox coming out

Firebox coming out

Firebox on the floor

Firebox on the floor

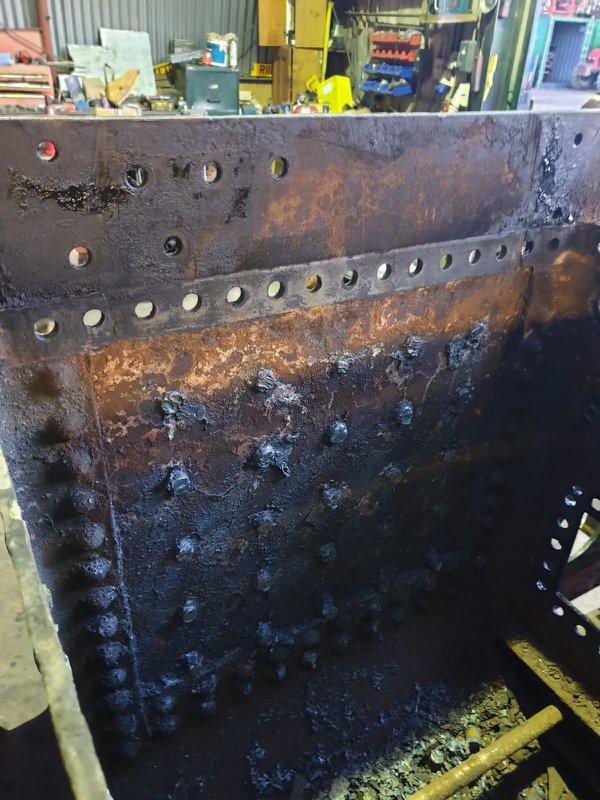

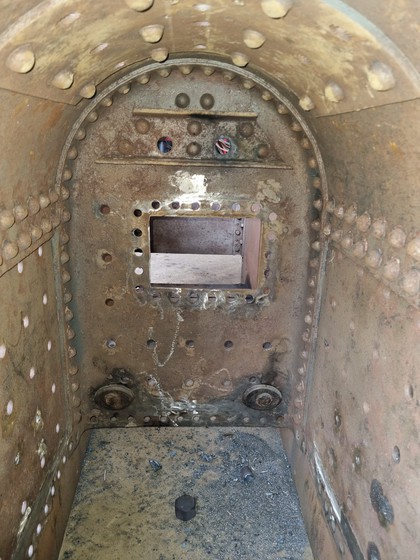

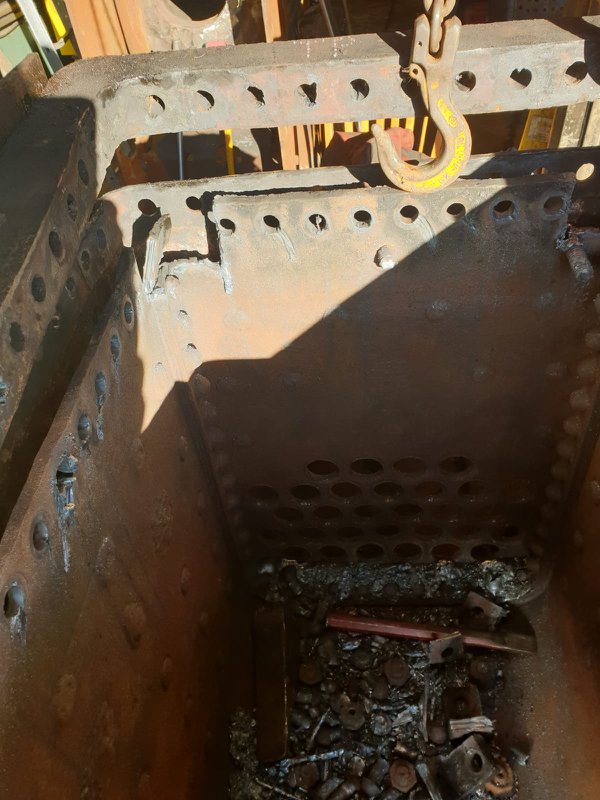

Empty outer wrapper

Empty outer wrapper



October 2020
It has been a long summer but we now have pictures of some progress. Part 2 - strip down.

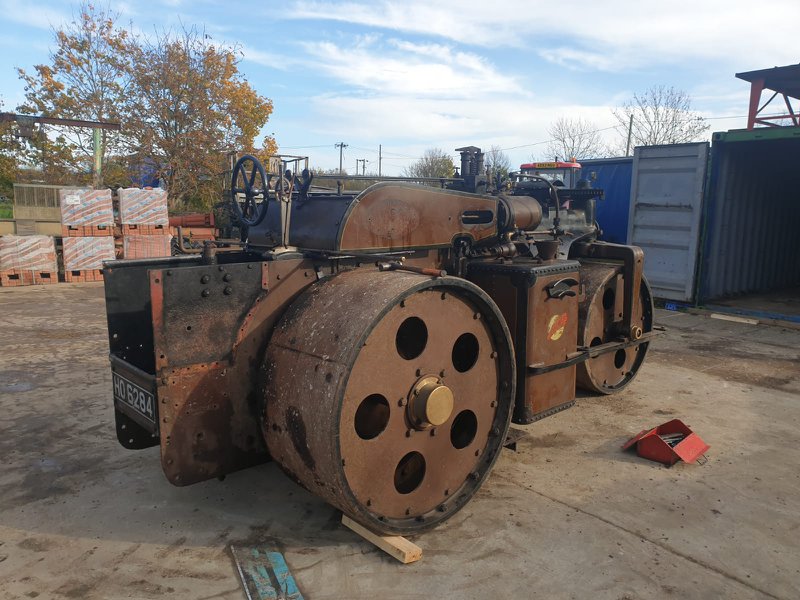

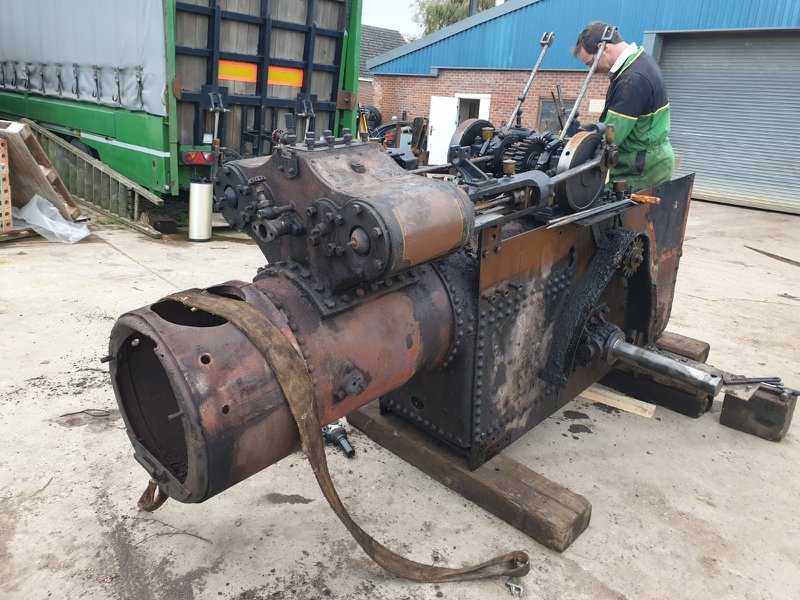

At Daves and ready to begin work

At Daves and ready to begin work

Coal bunkers and roof removed

Coal bunkers and roof removed

Front roll and fork removed

Front roll and fork removed

Rear rolls off

Rear rolls off

Engine motion assembly complete

Engine motion assembly complete



February 2020
After a long struggle we have found a boiler repairer up to the task of producing and fitting a new firebox (and possibly quite a bit more!). Part 1 - leaving home.

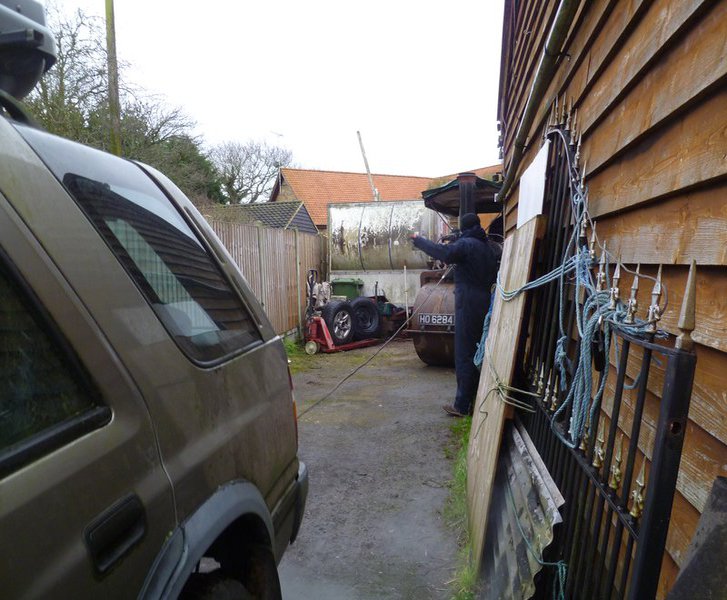

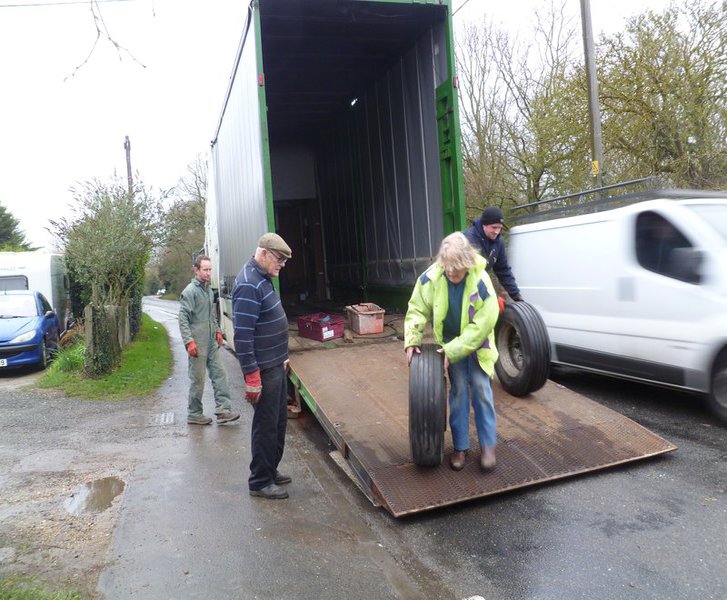

Ready to move down the drive

Ready to move down the drive

Off we go

Off we go

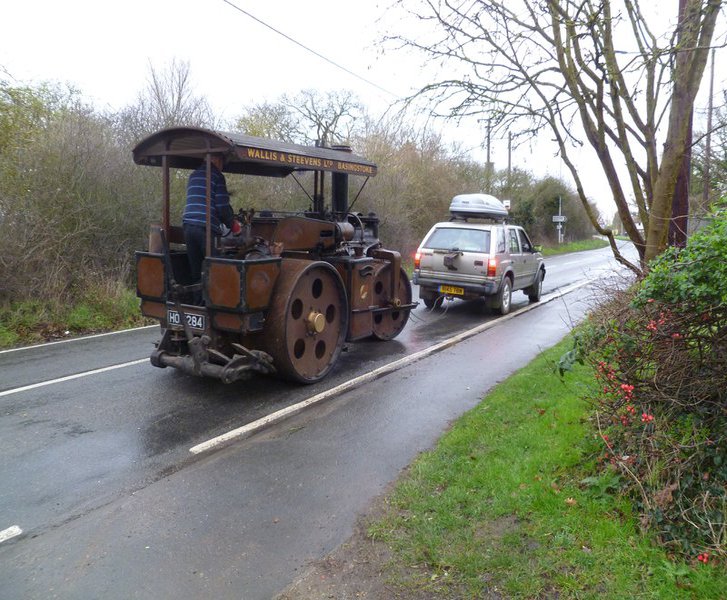

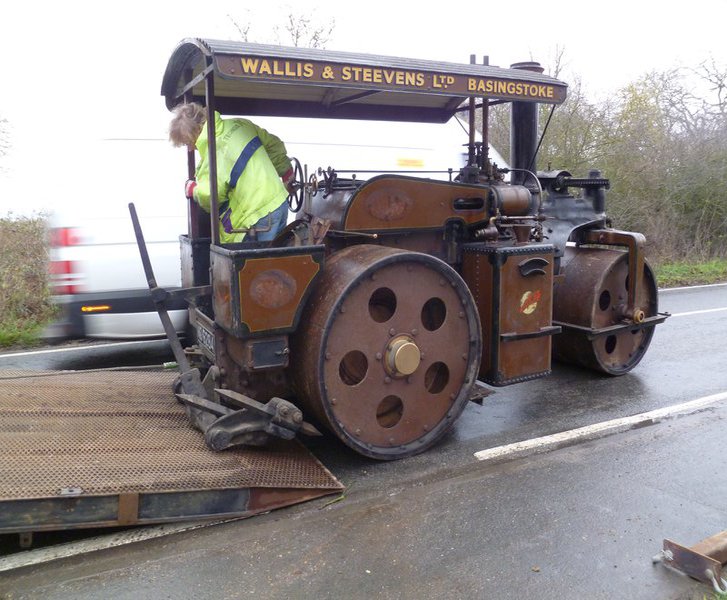

Out onto the road

Out onto the road

Clear the decks

Clear the decks

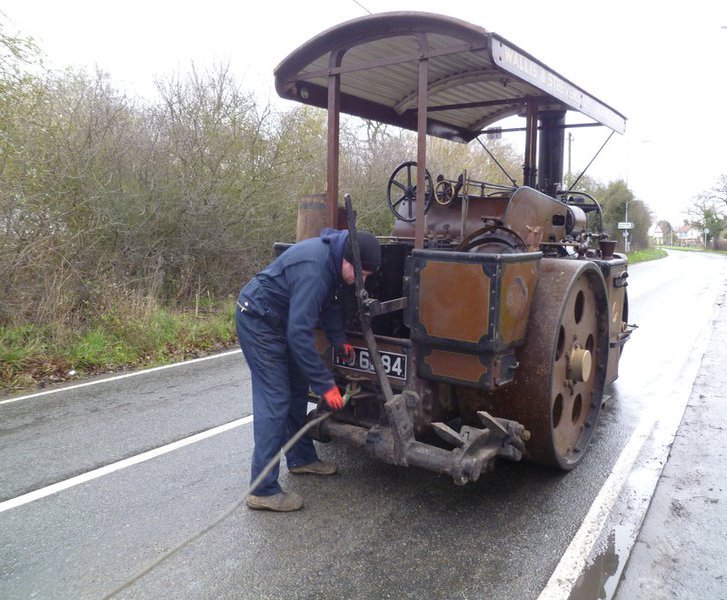

Winch wire on

Winch wire on

Up we go

Up we go

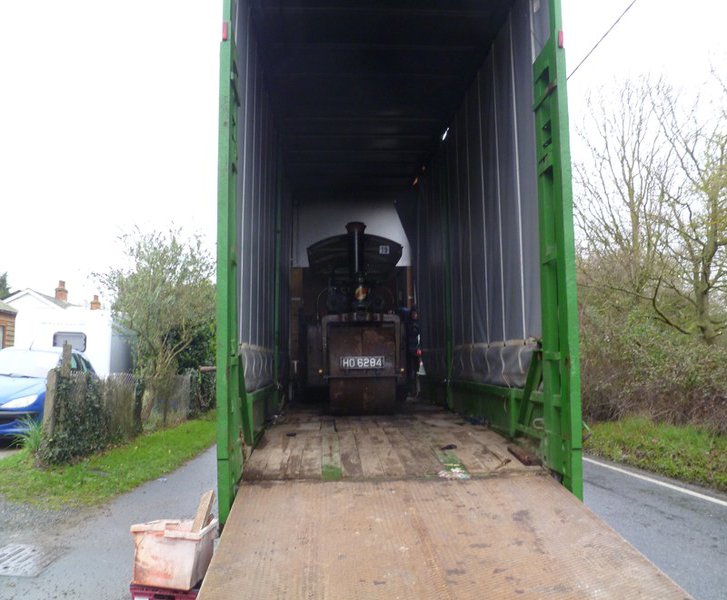

... and into the truck

... and into the truck

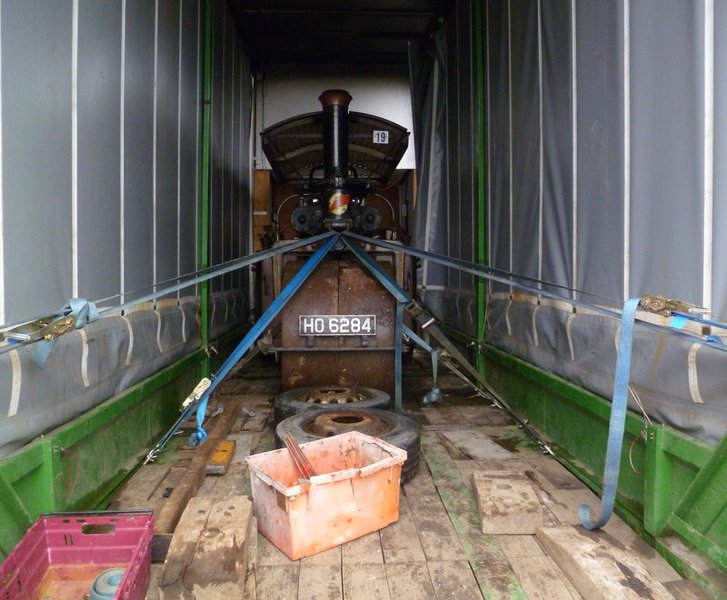

Well strapped down

Well strapped down

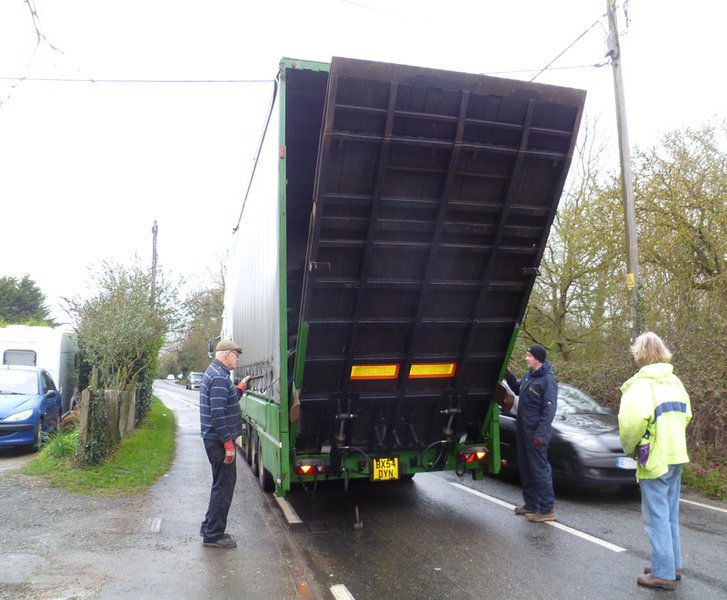

Shut that door

Shut that door

Bye for now

Bye for now



October 2011
The boiler is due for its 10 year inspection and hydraulic test, so she will be out of action for a couple of months at least. Here are the first pictures of the action.

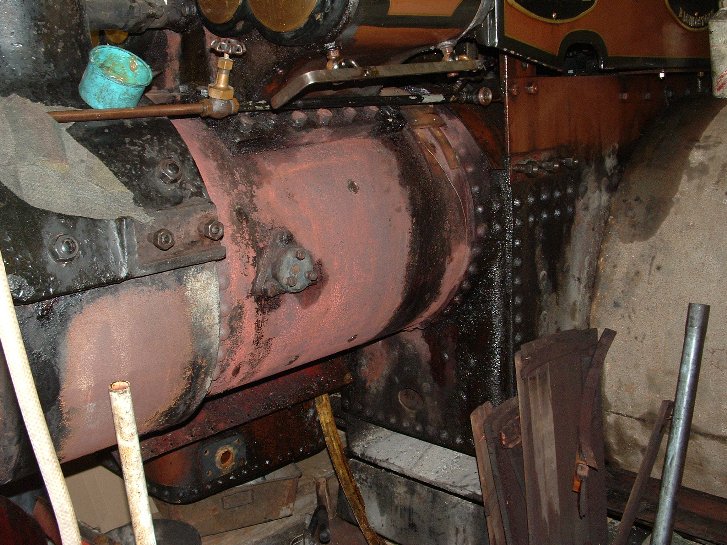

Cladding off

Cladding off

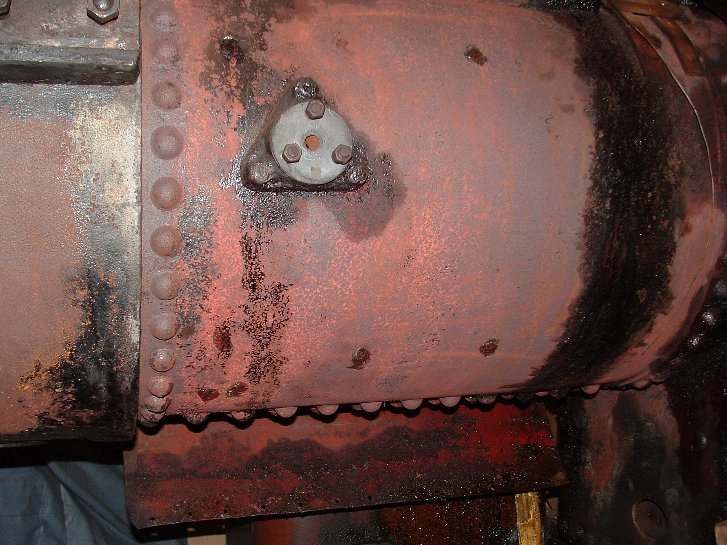

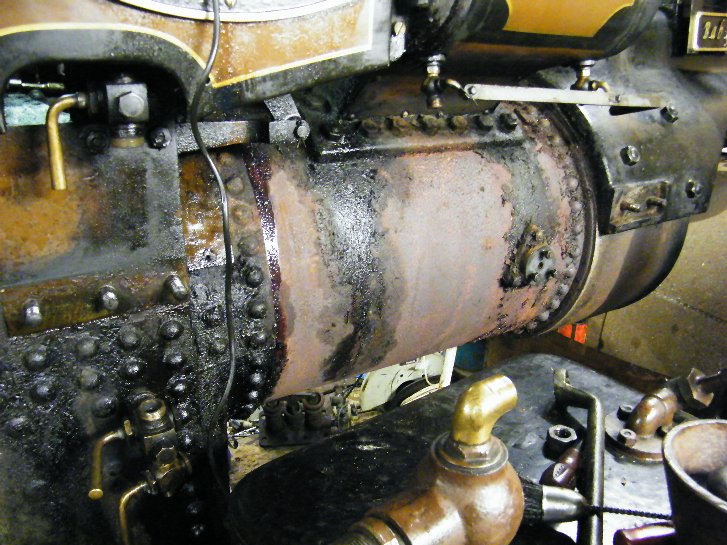

Near side of barrel

Near side of barrel

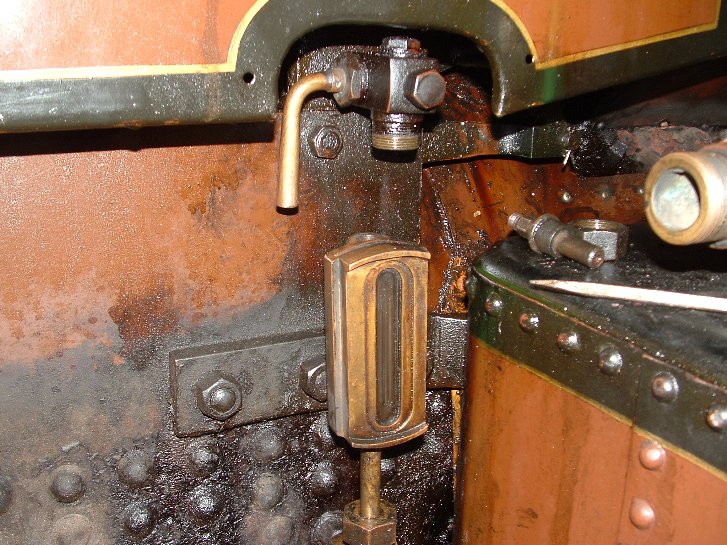

Gauge glass

Gauge glass

Gauge stubs

Gauge stubs

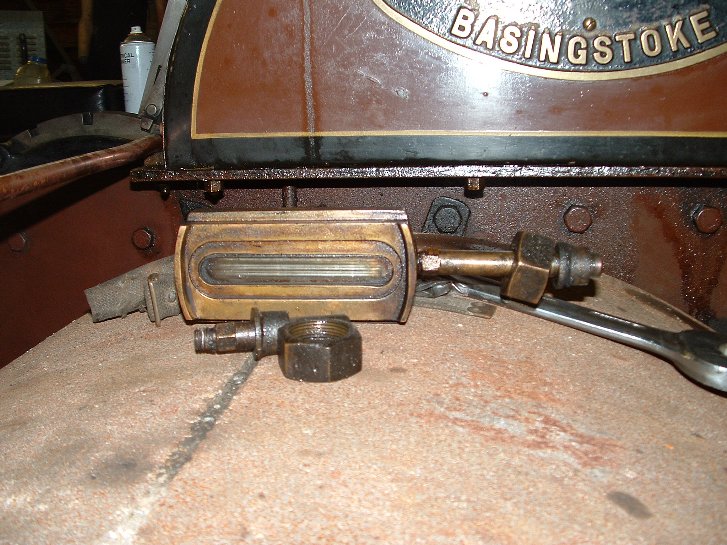

Strip gauge glass

Strip gauge glass

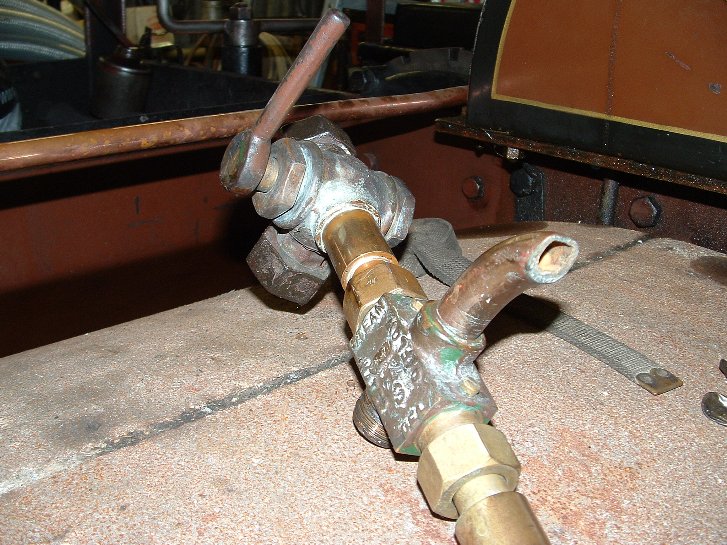

Injector

Injector

Injector

Injector

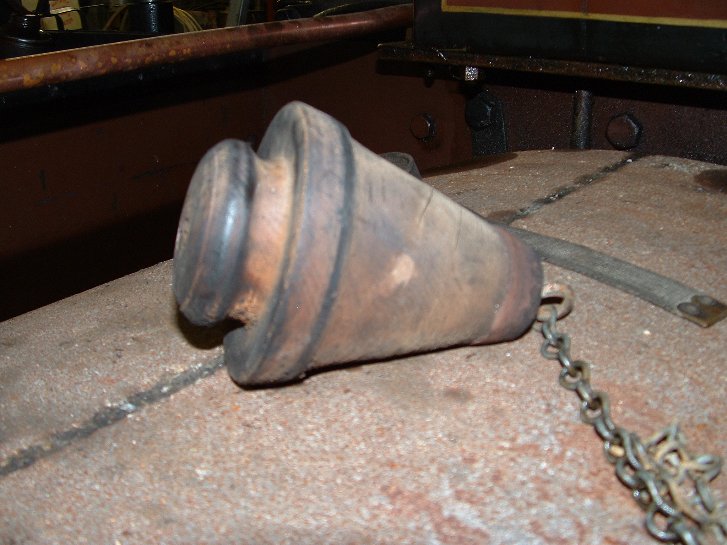

Wooden plug for side tank

Wooden plug for side tank

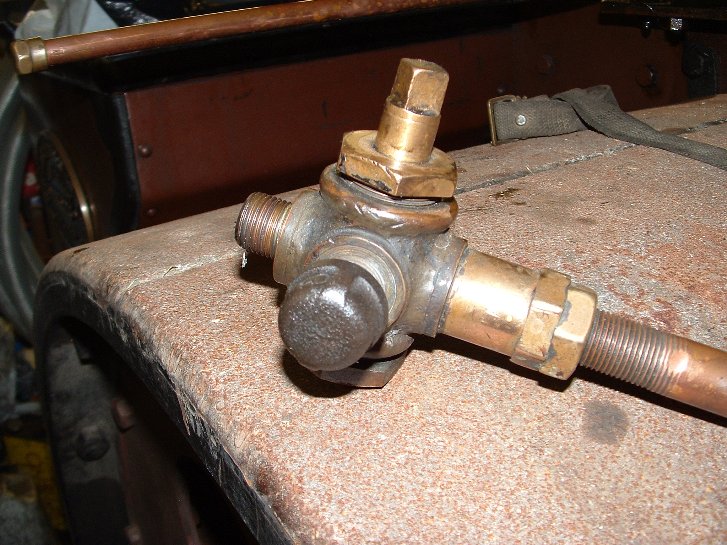

Changeover valve

Changeover valve

Safety valve assembly

Safety valve assembly

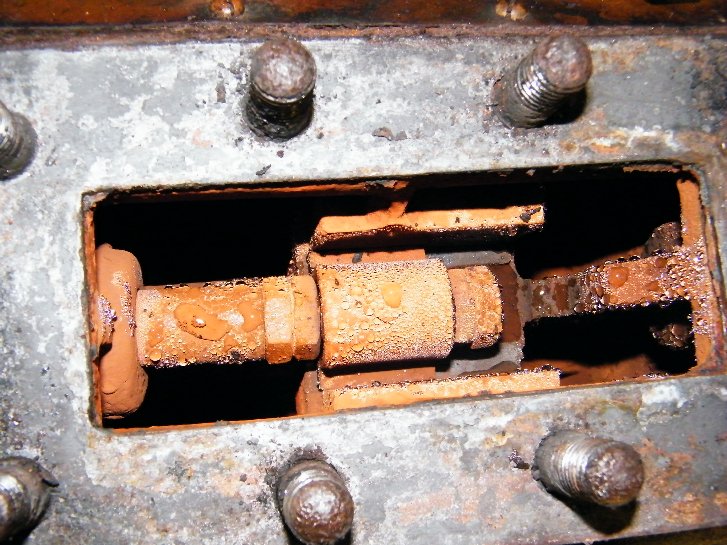

Regulator chamber

Regulator chamber

Regulator block

Regulator block

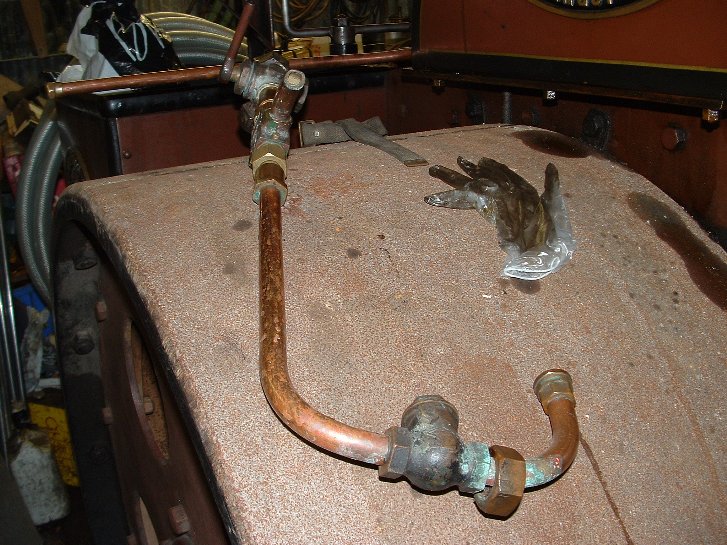

Pressure gauge and siphon tube

Pressure gauge and siphon tube

Regulator shaft removed

Regulator shaft removed

Side tank removed

Side tank removed



December 29th, 2006
We have finally managed to get back to the roller to finish off the tube replacement. Wallis & Steevens fitted ferrules into the firebox end of the tubes and, on advice of the boiler inspector, we decided to repeat the exercise

You can see the pictures in the Picture Gallery under Wallis 8 Ton option


September 14th, 2006
Well we made it to Barleylands safely, despite losing a boiler tube a couple of weeks ago. Preparing for a nice quiet steam trip for Ian and Sylvia B we heard the dreaded hissing from the firebox, and a quick visual check showed that nasty black patch in the fire and water running down the throatplate. Due to the build of the engine we could only get the tubes out by removing the yoke and front roller. By removing the pivot pin while suspending the smokebox from a gantry we were able to block up the front of the boiler and roll the front roller and yoke out as one piece. That gives good access to the smokebox to remove the old tubes. We got the boiler inspector in to have a look at the tube plates and shell while they were exposed. Everything was in order, but we took the opportunity to do a little 'make-good' on on or two rivet heads on the front tube plate. Our helpful tube suppliers were able to get a set of tubes for us quite quickly and we got them fitted and tested just in time for the Essex steam show at Barleylands.




History of the engine

Wallis & Steevens Advance 8 Ton Number 7788 built 1924 This Wallis and Steevens Advance Steam Roller Number 7788 was the second 8 Ton to come off the production line. It was supplied new to Romsey Rural District Council on 3rd June 1924. After a long service with them, it was transferred on 12th December 1952 to Hampshire County Council Winchester. (County road and Bridge Department)

On the 14th January 1959 it was sold to Mr Derek Marder a road contractor of Andover. All used it for road repairs. Early in the 1960s Mr Marder part exchanged it back to Wallis and Steevens for a new diesel roller. By then the roller was all but worn out, so Wallis and Steevens rebuilt it and put it into their Museum. It was taxed by them on the 6th January 1967 and showed by them until 1988 when they stopped trading. A Mr Davey bought the roller and the Registration Document was dated 28th January 1991.

It came into current ownership on 25th January 2001 and it was put back into Steam with a new boiler Test on the 6th March 2001. It has been to several local rallies, and is a frequent visitor to Langford Museum of Power.

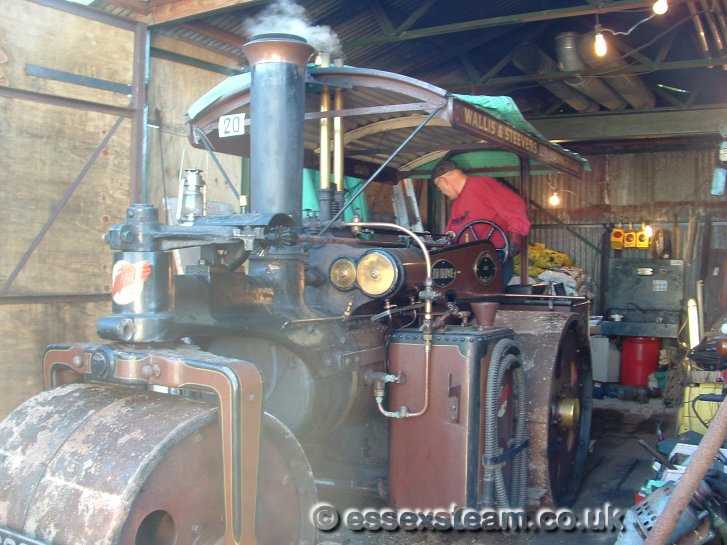

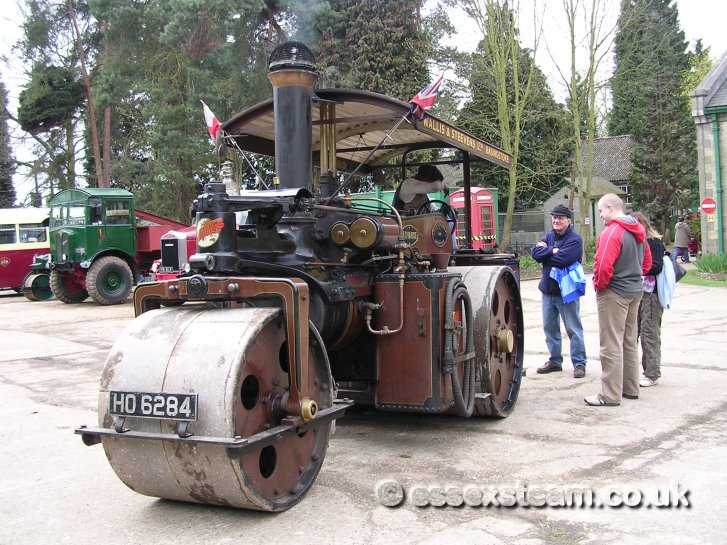

Wallis at Museum of Power

Wallis at Museum of Power

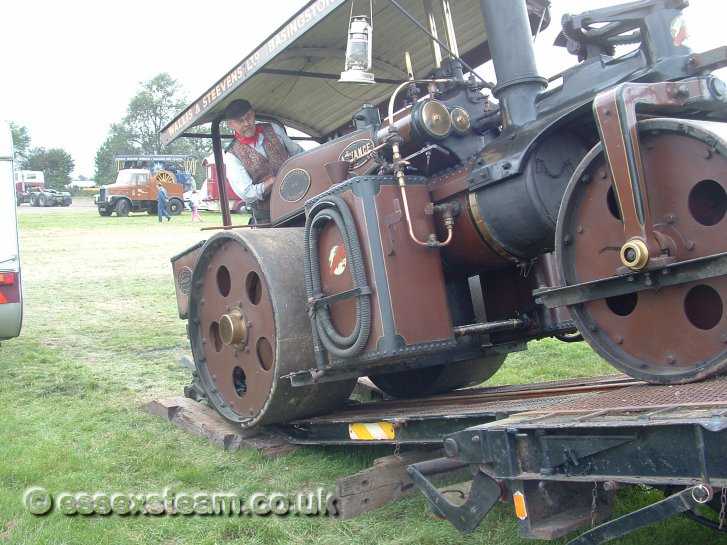

Wallis loading at Barleylands

Wallis loading at Barleylands

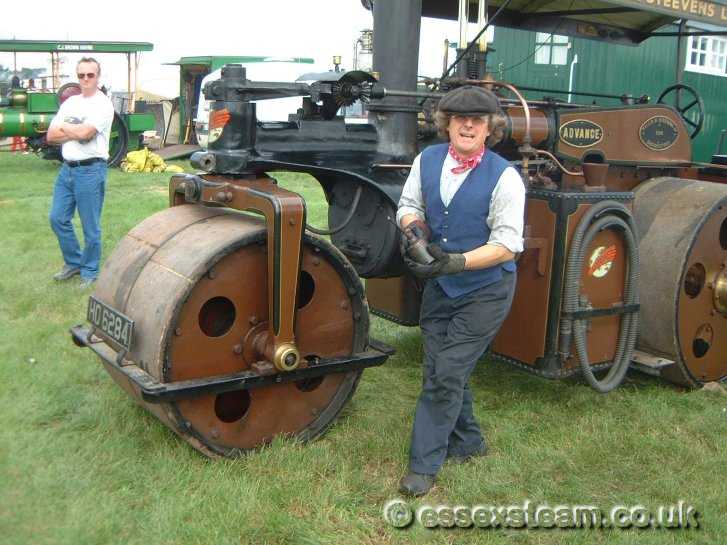

Wallis & Steevens Advance 8 ton

Wallis & Steevens Advance 8 ton

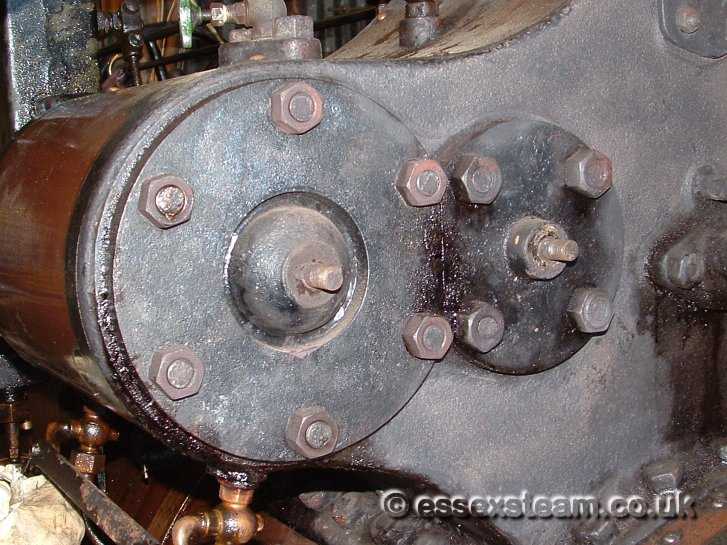

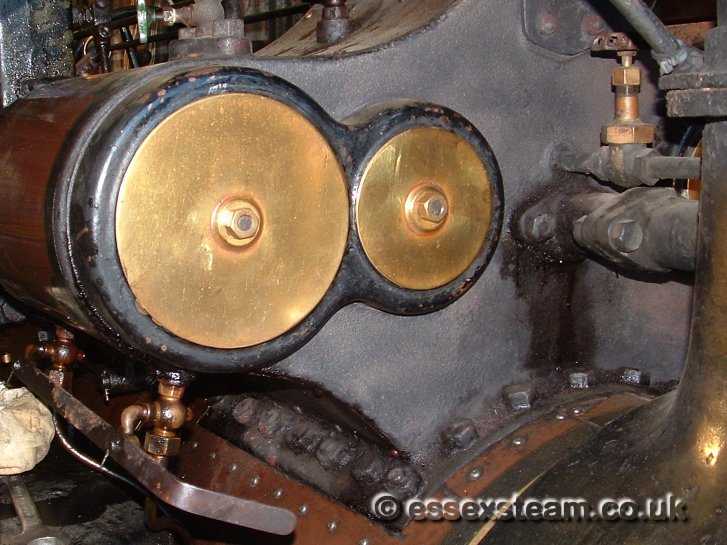

Wallis cylinder head cover

Wallis cylinder head cover

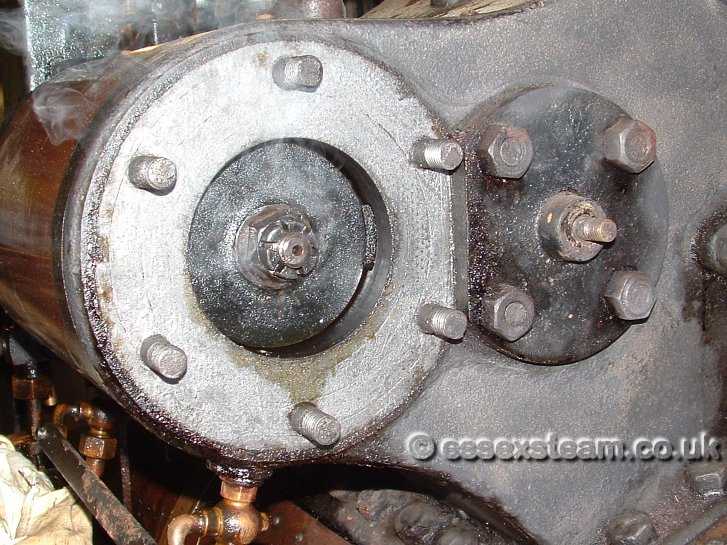

Wallis cylinder head

Wallis cylinder head

Wallis going away

Wallis going away

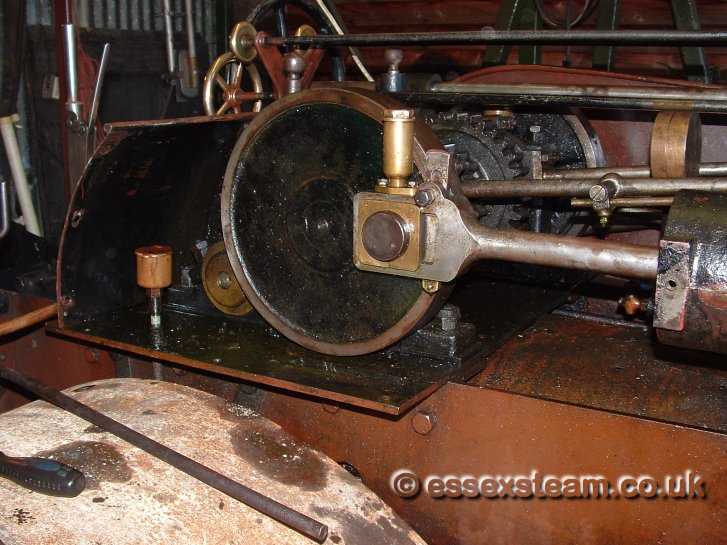

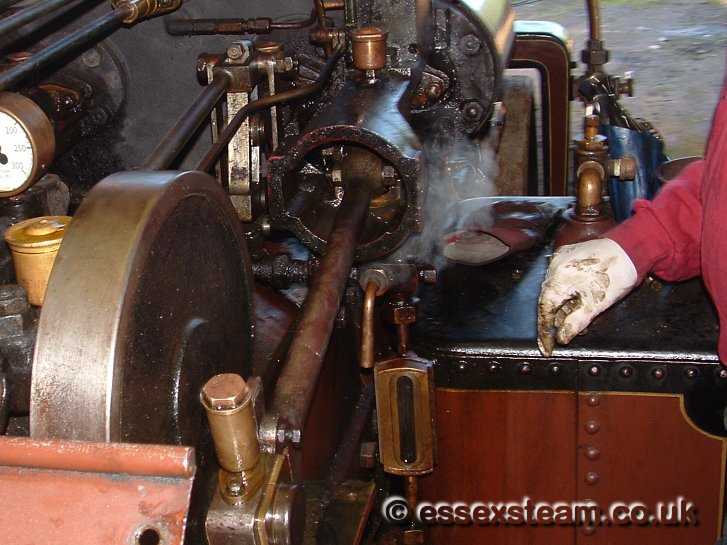

Wallis motion

Wallis motion

Wallis outer dead centre

Wallis outer dead centre

Wallis piston & steam passage

Wallis piston & steam passage

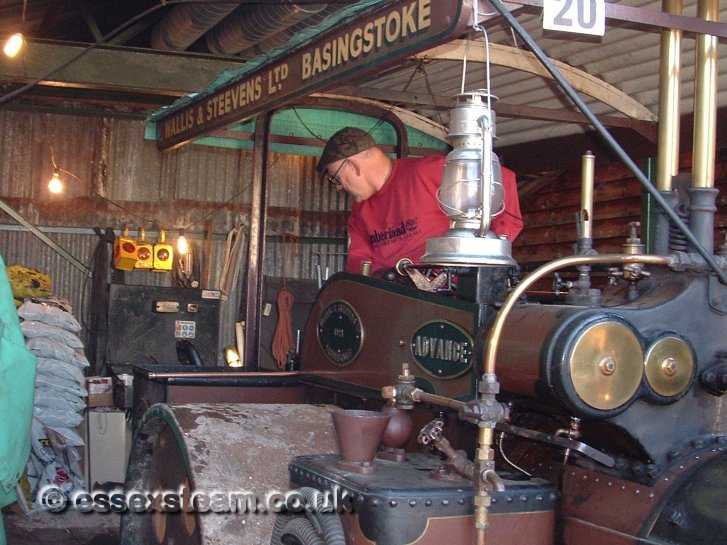

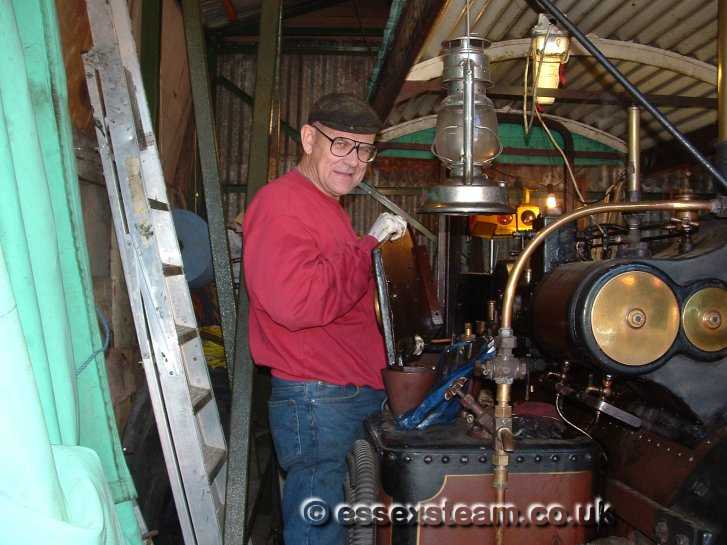

Wallis removing motion guard

Wallis removing motion guard

Wallis reversing in

Wallis reversing in

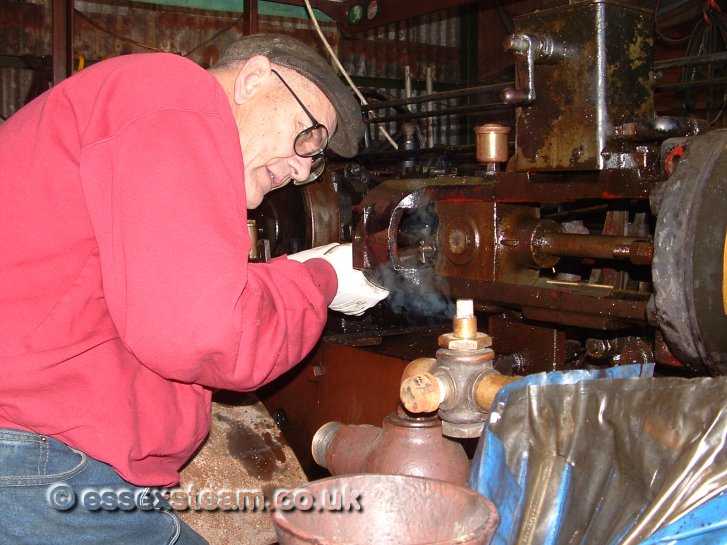

Wallis small end check

Wallis small end check
